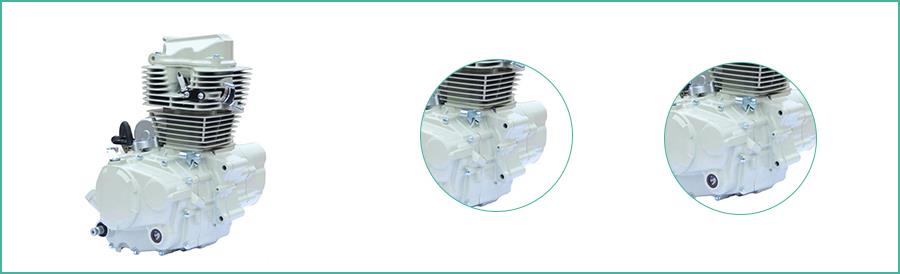

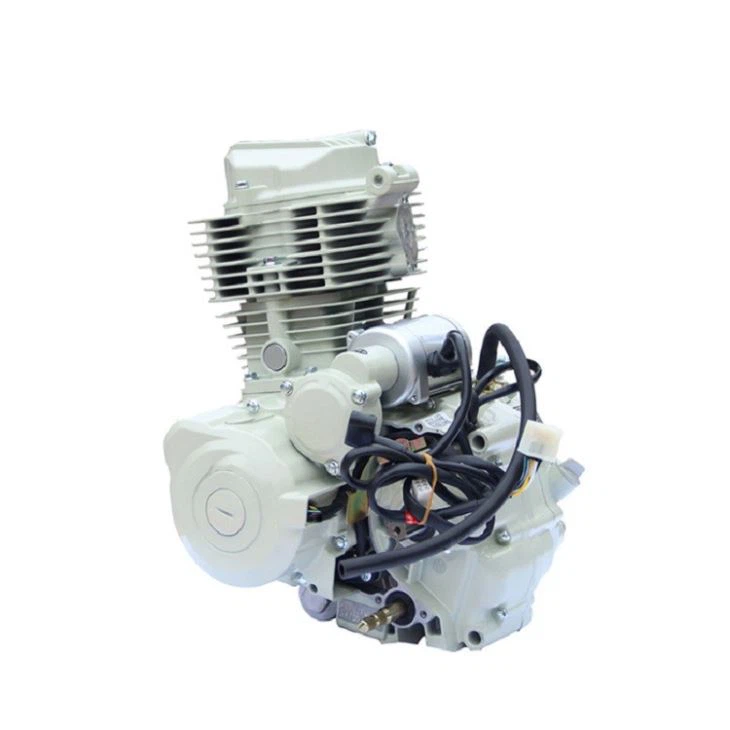

250cc Single Cylinder Water Cooled Vertical Engine

Product Details

The 250cc single cylinder engine is a four-stroke single-cylinder in a near horizontal orientation that is used on a number of small motorcycles or scooters.

The 250cc water cooled engine is forced water-cooled, with a chain-driven overhead camshaft and a crossflow hemi cylinder head. Fuel metering is by a single constant-velocity style sidedraft carburetor, typically a Keihin CVK clone or similar.

Product Parameter

Engine model: 166FMM
Engine Name: 250cc vertical engine

Engine Type:single cylinder,4 stroke,air cool,vertical
Displacement: 224CC
Dimensions: 330x318x445mm
Net weight: 30kg
Maximum power: 10.5KW 7500rpm
Maximum torque: 16.5N.m 5500rpm
Compression ratio: 8.8:1
Bore and stroke: 65.5x66.6mm
Ignition type: CDI
Lubrication type:pressure splash
Minimum fuel consumption rate: ≤354 kw.h
Starting type: electric/kick start
Carburetor model: Pz30
Clutch type: multi plate oil bath type
Gearshift type:5 gear with Reverse Gear

Company Information

1)We NOW produce more than 70kinds of different motorcycle cylinders available and be fully confident to match what you need like models of(CG125,CG150, YBR,CD70,HUSSAR 125,150ZAT,WAVE 100CC,CRYPTON,AN125,RV200,GY6 ,AX100etc
2)We can offer single cylinder,or cylinder set with other motor parts(piston;ring;pin,circlip,seal,gasket,bearing,cylinder head
3)We deserve a high reputation from many years good credit about quality and delivery time in local and oversea market.
4)Main arket of our motorcycle spare parts: south America,middle of east
5)We are surely to provide a good service from begining you click to us OEM is welcome. waiting for your inquiry and welcome to contact us.

FAQ

1.Can we do our brand packing?

Yes,we can do customer requested packing,just send us your detailed information.

2.Can you send us samples for our checking quality?

Yes, we can send sample free of charge but you need to pay the delivery fee.

3.How long is the trade time?

It usually take 7-30 days according to the quantities.

4.What is the payment term?

Visa, Master, WeChat ,Alibaba assurance pay ,Generally ,30%as deposit,and 70% before delivery.we'll show you the photos of the products and packages before you pay the balance.
